SONESSE 40 6/20 RTS 3M White Cable - 1001577 - 1 - Somfy
SONESSE 40 6/20 RTS 3M White Cable - 1001577 - 1 - Somfy
Video
Video
Video

Ref : 1001577 - SONESSE 40 RTS 6/20 VVF3M UNIT

SONESSE 40 6/20 RTS 3M White Cable

SONESSE 40 6/20 RTS 3M White Cable

Application
Interior blinds
Technology
RTS technology

Details and specifications

To ensure peak accoustic and mechanical performance use Sonesse 40 accessories only.

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access



Other documents & links

Install

Others

Technical information

End product
End product type Roller blinds, Roman blinds, Venetian blinds

Technology
Radio Frequency 433,42   MHz
Capacity of memory 12 different codes plus 3 wireless sensors
Coding Rolling code 16 million of possibilities

Electrical
Antenna Integrated
Consumption during operation 120   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 0.98   A
Nominal Voltage / Frequency 230V AC 50 Hz

Mechanical
Capacity of the limit switch unit 250   turns
Type of limit switch unit Electronic
Type of head Round
Nominal Speed 20   rpm
Nominal Torque 6   Nm

Standard
Approval RCM
Protection Index IP44
Insulation class Class II

Cable
Cable type PVC
Wire section 0.75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 2

Dimension
Riveting position distance (L2) 511   mm
Weight 1.25   Kg
Overall length (L3) 548   mm
Length (L1) 535   mm

Other
Noise level (according to Somfy measures) 45   dBA
Working temperature 0 to 60   °C

Accessories

2 Product(s)
SONESSE 40 CROWN & WHEEL Ø 40mm ROUND TUBE
Réf. 9016654
SONESSE 40 CROWN & WHEEL Ø 40mm OCTAGONAL TUBE
Réf. 9016655

Last consulted articles

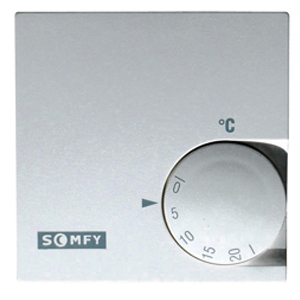

THERMOSTAT DRY CONTACT
