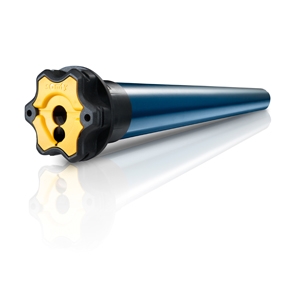

SONESSE 50 RTS 15/17 3M White Cable - 1001780 - 1 - Somfy

Ref : 1001780 - SONESSE 50 RTS 15/17 VVF3M UNIT

SONESSE 50 RTS 15/17 3M White Cable

SONESSE 50 RTS 15/17 3M White Cable

Application
Interior blinds
Technology
RTS technology

Details and specifications

To ensure peak accoustic and mechanical performance use Sonesse 50 accessories only.

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

End product
End product type Roller blinds, Roman blinds, Pleated and cellular blinds, Venetian blinds, Projection screens, Zebra blinds

Technology
Radio Frequency 433.42   MHz
Range in open field 200m
Capacity of memory 12 different codes
Coding Rolling code 16 million of possibilities
Range in house 20m with 2 reinforced concrete walls to ba passed through

Electrical
Antenna Integrated
Consumption during operation 153   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 0.67   A
Nominal Voltage / Frequency 230V - 50Hz

Mechanical
Capacity of the limit switch unit 250   turns
Type of limit switch unit Electronic
Type of head Star head
Nominal Speed 17   rpm
Nominal Torque 15   Nm
Repeatabilty ± 5   °

Standard
Approval RCM
Protection Index IP 44
Insulation class I

Cable
Plug in cable Removable
Cable type AWG 18
Wire section 0.75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 3

Dimension
Riveting position distance (L2) 640   mm
Weight 2.25   Kg
Diameter 50   mm
Overall length (L3) 653   mm
Basic crown for tube diameter 50 x 1,5   mm
Length (L1) 666   mm

Other
Installation Horizontal
Thermal time 4   mn
Noise level (according to Somfy measures) 48   dBA
Working temperature -20 / +60   °C

Accessories

3 Product(s)
SONESSE 50 TELESCOPIC PLUG END D10
Réf. 9016628
SONESSE 50 TELESCOPIC PLUG END D12
Réf. 9018228
SONESSE 50 WHEEL TUBE 50*1.5
Réf. 9018455
