SONESSE 50 10/28 3M White Cable - 1001788 - 1 - Somfy

Ref : 1001788 - SONESSE 50 12/28 VVF3M BAR

SONESSE 50 10/28 3M White Cable

SONESSE 50 10/28 3M White Cable

Application
Interior blinds
Technology
Wired Technology (WT)

Details and specifications

To ensure peak accoustic and mechanical performance use Sonesse 50 accessories only.

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

End product
End product type Roller blinds, Roman blinds, Pleated and cellular blinds, Venetian blinds, Projection screens, Zebra blinds

Technology
Radio Frequency 433.42   MHz

Electrical
Consumption during operation 180   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 0.8   A
Nominal Voltage / Frequency 230V - 50Hz

Mechanical
Capacity of the limit switch unit 46   turns
Type of limit switch unit Rapid
Type of head Star head
Nominal Speed 28   rpm
Nominal Torque 10   Nm

Standard
Approval RCM
Protection Index IP 44
Insulation class I

Cable
Plug in cable Black LT Plug
Cable type AWG 18
Wire section 0.75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 4

Dimension
Riveting position distance (L2) 590   mm
Weight 3.14   Kg
Diameter 50   mm
Overall length (L3) 603   mm
Basic crown for tube diameter 50 x 1,5   mm
Length (L1) 616   mm

Other
Installation Horizontal
Thermal time 4   mn
Noise level (according to Somfy measures) 45.3   dBA
Working temperature -20 / +60   °C

Accessories

3 Product(s)
SONESSE 50 TELESCOPIC PLUG END D10
Réf. 9016628
SONESSE 50 TELESCOPIC PLUG END D12
Réf. 9018228
SONESSE 50 WHEEL TUBE 50*1.5
Réf. 9018455

Last consulted articles

RTS/ILT WHITE Cable 10M
Réf. 9001659
LINKEO 2 200mm stroke 230V AC silver
Réf. 1230001
FTS STRAP FIXING BLOCK
Réf. 9146065
CD25 1/4.8
Réf. 9163900
SURFACE BOX FOR CENTRALIS INDOOR RECEIVER
Réf. 9154122

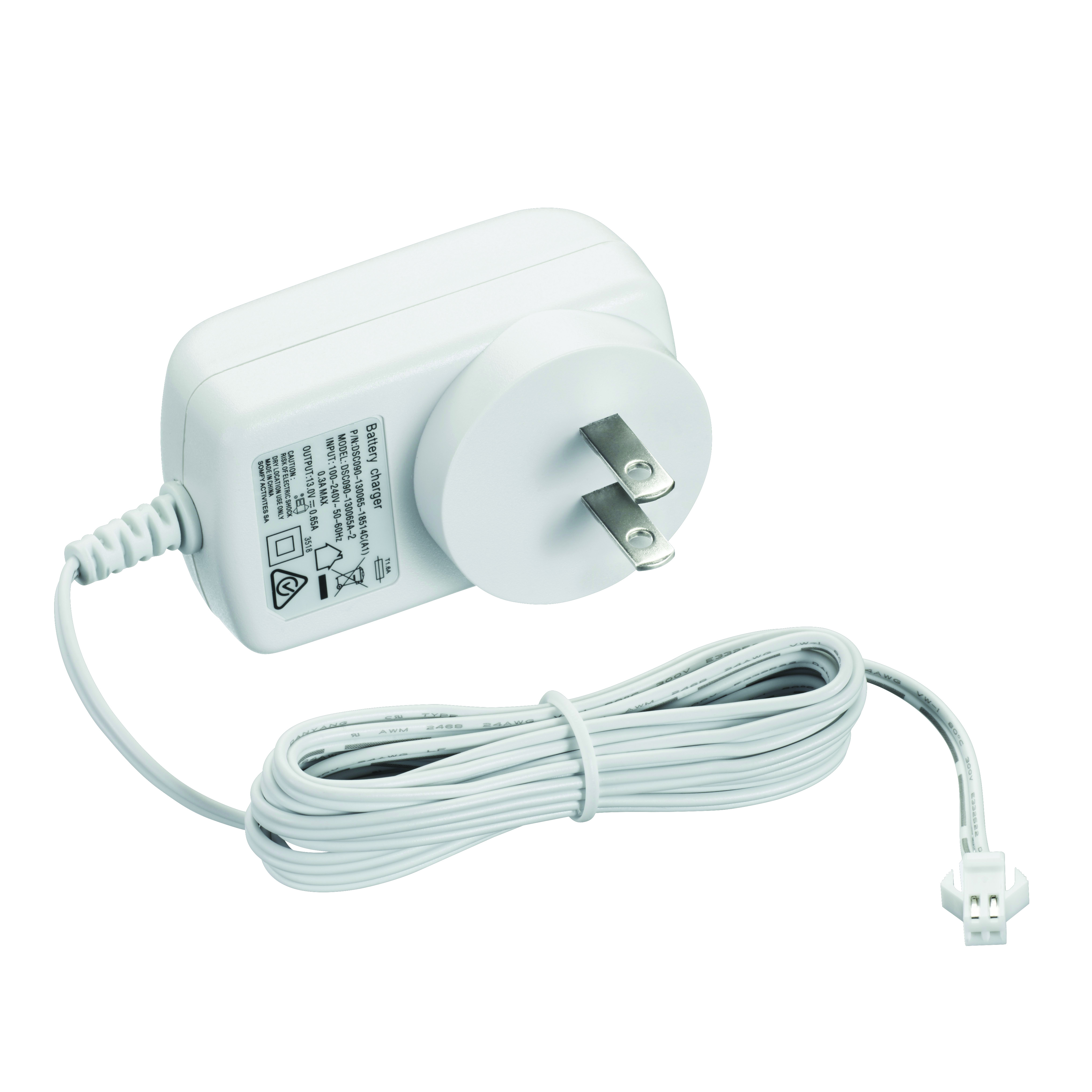

AC WALL CHARGER FOR NIMH BATTERY TUBE
