Obsolete product

Ref : 1002461 - TILT&LIFT 25 RTS CENTRAL UNIT [EN ES IT FR PT EL]

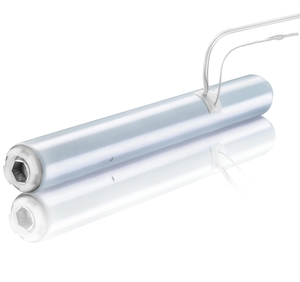

TILT&LIFT 25 RTS CENTRAL UNIT

Application
Interior blinds
Technology
RTS technology

Product benefits

Autonomous 12V motor (battery powered) with Integrated RTS radio for internal venetian blinds. Raise and lowering operation of 25mm Venetian blinds including orientation of blades.

Powered by Lithium batteries, rechargeable NiMH batteries (NiMH charger available for direct connection to the battery tube).

RTS radio receiver built in motor head. Limits Setting completed via RTS remote. Motor compatible with RTS radio control points.

Motor integration in a "Center position" for 25mm venetian headrail.

Indoor Use Only.

Technical information

Technology
Radio Frequency	433.42 MHz
Range in open field	200m
Capacity of memory	12 transmitters
Coding	Rolling code 16 million of possibilities
Range in house	20m with 2 concrete walls to be passed through

Electrical
Consumption in standby mode	0.00132 W
Consumption during operation	(Up at nominal torque)8.4 W
Minimum voltage	9 V
Maximum Voltage	14 V
Nominal Voltage / Frequency	12V DC
