Obsolete product, replaced by

Ref : 1240512

Redesigned motor head 12mm star socket instead of 10mm. Requires different charger.

Ref : 1003300 - SONESSE 30 WF RTS 2/20 LI-ION UNIT

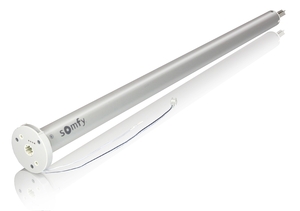

SONESSE 30 WireFree RTS 2/20 LI-ION

Designed for silence and simplicity

A wirefree motor with a built-in, rechargeable lithium-ion battery offering a convenient and quiet motorised solution for internal blinds.

Product benefits

Designed for power and strength, able to control larger window coverings which increases opportunities for motorisation
Delivers quiet operation to enhance end user experience
Adjustable speed control for customised shade performance
Compatible with Telis Mod/Var RTS remote for precise control of blind slats
Embedded LED lights ease programming and indicate when battery level is low

Rechargeable, lithium-ion battery reduces overall costs, minimises maintenance and eliminates the need to install and replace batteries
Protect interiors and furnishings from overexposure to damaging UV rays
Add sensors or timers to reduce heating and cooling costs automatically

End product
End product type	Internal Blinds

Technology
Radio Frequency	433.42 MHz

Electrical
Rated current	<0.750 A
Nominal Voltage / Frequency	Li-ion embedded battery

Mechanical
Capacity of the limit switch unit	100 turns
Nominal Speed	20 rpm
Nominal Torque	2 Nm
Repeatabilty	+/-5 °

Standard
Protection Index	IP 30 (for indoor use only)
Insulation class	Class III

Other
Limits of use	indoor only
Information	To retain the motor’s battery lifespan, Somfy recommends recharging the battery at least once every 12 months, even if power remains. If the battery goes flat, recharge it immediately. Leaving a battery fully discharged for more than two months may irreparably damage its ability to recharge.
Noise level (according to Somfy measures)	49@20rpm dBA
Working temperature	0 to 60 °C
