LS 40 3/30 2.5M White Cable - 1020147 - 1 - Somfy

Ref : 1020147 - LS 40 3/30 VVF 2,5M - UNIT

LS 40 3/30 2.5M White Cable

LS 40 3/30 2.5M White Cable

Application
Interior blinds,Roller shutters,External Screens,Awnings,Projection screen
Technology
Wired Technology (WT)

Details and specifications

This motor replaces 1020010.  See here for more information regarding the update of the Altus and LS 40 range.

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

End product
End product type Roller blinds, Roman blinds, Pleated and cellular blinds, Venetian blinds, Projection screens, Zebra blinds

Electrical
Maximum Voltage 255   V
Minimum voltage 195.5   V
Consumption during operation 90   W
Consumption in standby mode 0   W
Nominal Voltage / Frequency AC - RGE 1 - 230V/50HZ
Rated current 0.42   A

Mechanical
Nominal Torque 3   Nm
Nominal Speed 30   rpm
Type of limit switch unit Progressive
Capacity of the limit switch unit 40   turns
Repeatabilty +/- 15   °
Traction force 7   Kg

Standard
Protection Index IP 44
Insulation class II
Approval NF

Cable
Wire Length 2.5   m
Number of wires of the cable 3
Wire section 0.75   mm²
Cable type VVF
Color WHITE

Dimension
Diameter 40   mm
Weight 0.431   Kg

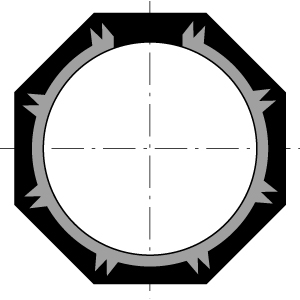

Basic crown for tube diameter 37   mm
Length (L1) 485   mm
Riveting position distance (L2) 448   mm
Overall length (L3) 469   mm

Other
Thermal time 4   mn
Noise level (according to Somfy measures) 50   dBA
Limits of use Motor should be installed horizontally Do not use for panthograph
