Ref : 1030039 - SONESSE 50 PA 3/28 VVF 3M - BAR

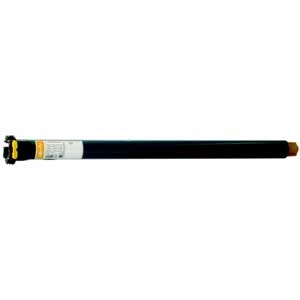

SONESSE 50 WT PA 3/28 3M White Cable
SONESSE 50 WT PA 3/28 3M White Cable
| Application | ||
|---|---|---|
| Interior blinds | ||
| Technology | ||
| Wired Technology (WT) | ||
Details and specifications
- 230V / 50Hz tubular motor.
- The Sonesse 50 has been adapted to be a quiet† roller blind motor.
- Available in 3Nm, coupled with its flexible 48mm design, it is adapted for
Ø50mm tubes and above. Rapid set push button or progressive limits (PA) and
the adaptability of 230V control make the Sonesse 50 a quick, quiet performer
for installations that require a minimal level of noise. - Rapid set or progressive limits.
- 46 turn limit capacity (29 for Sonesse 50 PA).
- Suitable for tubes: Ø50 to Ø65.
- 230V switch control via electronic or mechanical means*.
- Requires the use of a crown and wheel for tube adaptation.
- Horizontal mount only.
- Intermittent Usage.
* Parallel wiring of motors is prohibited without the use of an isolation controller, eg. 4AC Motor Controller,
4 Motor Group Controller, etc. Direct switching of a 240V motor must always be done via a mechanical interlock.
† Quiet operation is dependant on installation factors, please contact Somfy or consult the installation guide
for the appropriate measures to take in order to achieve a minimum level of noise.
Specific Idler end plug and stop wheel must be used for correct quiet operation.
