LOGGIA RTS 15/17 3M White Cable - 1039517 - 1 - Somfy

Ref : 1039517 - LOGGIA RTS 15/17 VVF 3M - UNIT

LOGGIA RTS 15/17 3M White Cable

LOGGIA RTS 15/17 3M White Cable

Application
External Screens
Technology
RTS technology

Details and specifications

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

End product
End product type Vertical Screens

Technology
Radio Frequency 433,42   MHz
Capacity of memory 12 different codes
Coding Rolling code 16 million of possibilities

Electrical
Antenna Integrated
Consumption during operation 150   W
Minimum voltage 207   V
Maximum Voltage 244   V
Rated current 0.65   A
Nominal Voltage / Frequency 230V AC 50Hz

Mechanical
Capacity of the limit switch unit 200   turns
Type of limit switch unit Electronic
Nominal Speed 17   rpm
Nominal Torque 15   Nm

Standard
Approval RCM
Protection Index IP44
Insulation class Class I

Cable
Plug in cable Grey LT Plug
Cable type PVC
Wire section 0,75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 3

Dimension
Riveting position distance (L2) 640   mm
Weight 1,95   Kg
Overall length (L3) 655   mm
Basic crown for tube diameter 50 x 1,5   mm
Length (L1) 663   mm

Other
Thermal time 4   mn
Noise level (according to Somfy measures) 50   dBA
Working temperature -10 to +40   °C

Last consulted articles

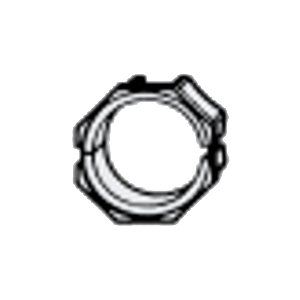

CROWN Ø 40mm OCTAGONAL TUBE Imbac
Réf. 9147327
TELIS 4 RTS LOUNGE (5 Channel)
Réf. 1810651
RTS/ILT BLACK Cable 3M
Réf. 9001654
SOLIRIS RTS SENSOR
Réf. 1818212
Altus 28 WireFree RTS 1.5/28 Li-ion V2
Réf. 1241151
SONESSE 40 CROWN & WHEEL Ø 40mm ROUND TUBE
Réf. 9016654

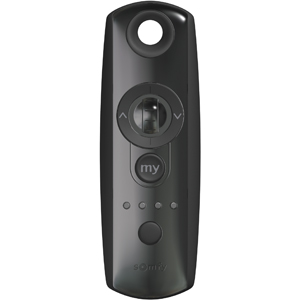

TELIS 4 MOD/VAR RTS LOUNGE (5 Channel)
