End product
End product type	Awnings

Technology
Radio Frequency	RTS 433,42   MHz
Capacity of memory	12 different codes plus 3 wireless sensors
Coding	Rolling code 16 million of possibilities
Range in house	20 m through 2 reinforced concrete walls

Electrical
Antenna	Integrated
Consumption during operation	140   W
Minimum voltage	207   V
Maximum Voltage	253   V
Rated current	0.65   A
Nominal Voltage / Frequency	230V 50Hz

Mechanical
Capacity of the limit switch unit	250   turns
Type of limit switch unit	Electronic
Type of head	Star head
Nominal Speed	17   rpm
Nominal Torque	15   Nm
Repeatabilty	± 3   °

Standard
Approval	RCM
Protection Index	IP44
Insulation class	I

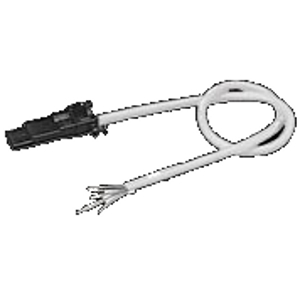

Cable
Plug in cable	Grey LT Plug
Cable type	VVF
Wire section	0,75   mm²
Color	White
Wire Length	3   m
Number of wires of the cable	3

Dimension
Riveting position distance (L2)	590   mm
Weight	2.12   Kg
Diameter	50   mm
Overall length (L3)	613   mm
Basic crown for tube diameter	50 x 1,5   mm
Length (L1)	605   mm

Other
Thermal time	4   mn
Noise level (according to Somfy measures)	50   dBA
Working temperature	-20 / +70   °C
