• 230V / 50Hz tubular motor.

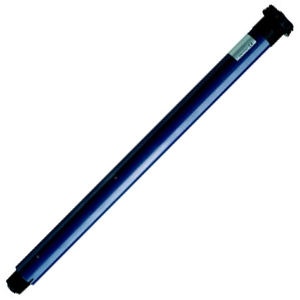

  The Orea 50 / 60 WT is suitable for awning applications that require the use of a
  sealed cassette box. Available in torques from 25Nm to 100Nm, coupled with its flexible
  48mm or 60mm (respectively) design, it is adapted for Ø50mm tubes and above.
  Electronically set limits and the adaptability of 230V control plus over torque upper
  limit functionality for a tightly sealed headbox make the Orea 50 / 60 WT
  ideal for cassette style awnings.
• Remote set limits with auto set over torque upper limit.
• Turning capacity limited only by thermal time.
• Suitable for tubes: Ø50 to Ø85.
• 230V switch control via mechanical or electronic means.*
• Requires the use of a crown and wheel for tube adaptation.
• Horizontal mount only.
• Intermittent Usage.

*Direct switching of a 230V motor must always be done via a mechanical interlock.
