OREA 60 RTS 120/12 VVF 3M - UNIT - 1184063 - 1 - Somfy

Ref : 1184063 - OREA 60 RTS 120/12 VVF 3M - UNIT

OREA 60 RTS 120/12 VVF 3M - UNIT

OREA 60 RTS 120/12 VVF 3M - UNIT

Application
Awnings
Technology
RTS technology

Details and specifications

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

End product
End product type Awnings

Technology
Radio Frequency RTS 433,44   MHz
Capacity of memory 12 different transmitters plus 3 wireless sensors
Coding Rolling code 16 million of possibilities
Range in house 20m through 2 reinforced concrete walls

Electrical
Antenna Integrated
Consumption during operation 450   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 1.8   A
Nominal Voltage / Frequency 230V 50Hz

Mechanical
Capacity of the limit switch unit 200   turns
Type of limit switch unit Electronic
Type of head Star head
Nominal Speed 12   rpm
Nominal Torque 120   Nm
Repeatabilty ± 3   °

Standard
Approval RCM
Protection Index IP44
Insulation class I

Cable
Plug in cable Grey LT Plug
Cable type VVF
Wire section 0.75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 3

Dimension
Riveting position distance (L2) 717   mm
Weight 5.03   Kg
Diameter 60   mm
Overall length (L3) 734   mm
Basic crown for tube diameter 63 x 1,5   mm
Length (L1) 740   mm

Other
Thermal time 4   mn
Noise level (according to Somfy measures) 66   dBA
Working temperature -10 to +40   °C

Last consulted articles

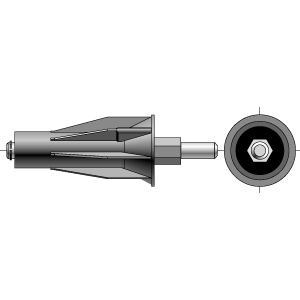

SPRING LOADED PLUG END PIN Ø 12
