FTS ANTARES 70/17 2.5M Black Cable - 1185011 - 1 - Somfy

Ref : 1185011 - FTS LT ANTARES 70/17 RRF 2,5M - UNIT

FTS ANTARES 70/17 2.5M Black Cable

FTS ANTARES 70/17 2.5M Black Cable

Application
Awnings
Technology
Wired Technology (WT)

Details and specifications



    1. 230V / 50Hz tubular motor.
    2. The FTS range is specially adapted to suit Fabric Tensioning Systems. Utilising two motors and specific electronics to manage the run of the system, the FTS motor is unique in its operation. Horizontal and inclined shading is where the Fabric Tensioning System is particularly adept.
    3. Rapid set limits.
    4. 6 minute running time (electronically limited).
    5. Suitable for tubes: Ø60 to Ø70.
    6. Specific FTS Hi-Pro Box and FTS motors required for operation.
    7. Requires the use of a crown and wheel for tube adaptation.
    8. Horizontal mount only.
    9. Intermittent Usage.



Other documents & links

Others

Technical information

Electrical
Consumption during operation 390   W
Minimum voltage 207   V
Maximum Voltage 244   V
Rated current 1.9   A
Nominal Voltage / Frequency 230V 50Hz

Mechanical
Capacity of the limit switch unit 35   turns
Type of limit switch unit Quick limit switch
Type of head Star Head
Nominal Speed 17   rpm
Nominal Torque 70   Nm

Standard
Approval RCM
Protection Index IP44
Insulation class Class I

Cable
Plug in cable Black LT Plug (non removable)
Cable type Rubber
Wire section 0.75   mm²
Color Black
Wire Length 2.5   m
Number of wires of the cable 5

Dimension
Riveting position distance (L2) 677   mm
Weight 5.1   Kg
Overall length (L3) 694   mm
Length (L1) 700   mm

Other
Thermal time 7   mn
Noise level (according to Somfy measures) -   dBA
Working temperature -10 to +40   °C

Last consulted articles

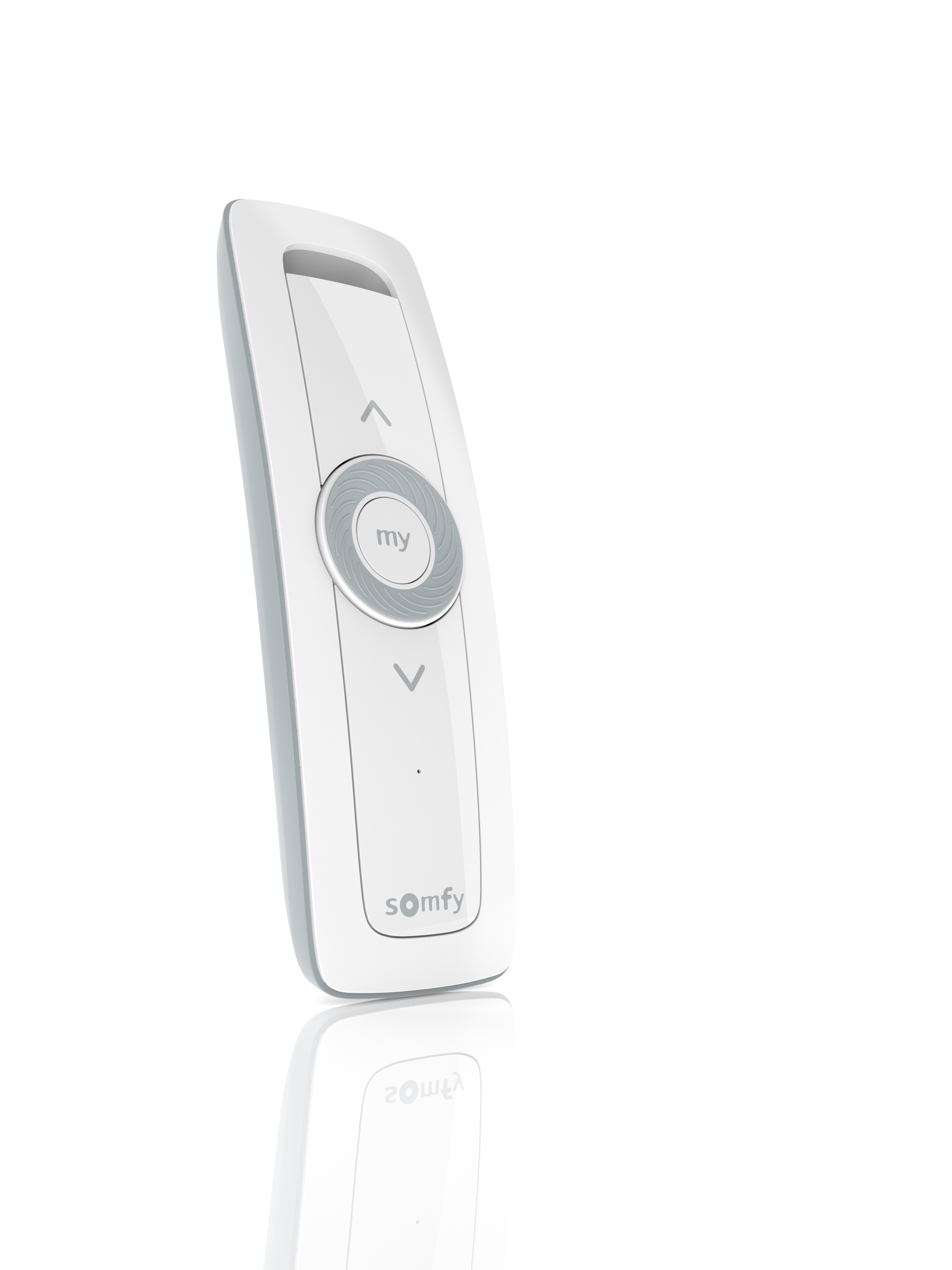

SITUO 1 VARIATION RTS PURE
