Ref : 1240239 - Movelite 35 RTS 433 W EU 1.0M

MOVELITE 35 RTS 1.0M WHITE CABLE

An accessible and elegant curtain motorisation solution with the essential features

More about
Application
Curtains
Technology Warranty
RTS technology 5 Years

Product benefits

Reliable and minimalistic
• A curtain motor solution with the essential functions
• Suitable for residential and commercial projects


Adaptive and effective
• Compatible with multiple technologies (WT/RTS/DCT*) to meet varying needs and applications
• Curtain weight up to 35kg
• Curtain Track up to 10m


Flexible Installation
• Available with optional inline connector for ease of programming [1245732 - MOVELITE 35 RTS W/INLINE CONNECTOR]



Other documents & links

Others

Technical information

Technology
Radio Frequency 433.42   MHz
Range in open field 200 m
Capacity of memory 12
Range in house 20m

Electrical
Antenna External
Consumption in standby mode 0.49   W
Minimum voltage 100   V
Maximum Voltage 255   V
Rated current 0.54   A
Nominal Voltage / Frequency AC - RGE 8 - 90-240V/50-60HZ

Mechanical
Nominal Speed 15cm/s - 105   rpm

Standard
Protection Index IP 30
Insulation class Class I

Cable
Plug in cable OPEN CABLE
Cable type VVF
Wire section 0.75   mm²
Color WHITE
Wire Length 1   m
Number of wires of the cable 4

Other
Thermal time 2.5   mn
Noise level (according to Somfy measures) 41   dBA
Working temperature 0°C to +60   °C

Last consulted articles

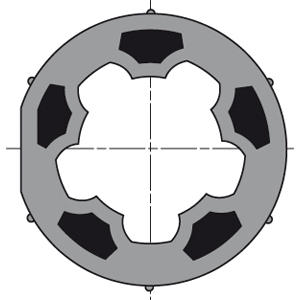

WHEEL Ø 60 x 1.5mm ROUND TUBE
