Ref : 1240512 - Sonesse 30 WF RTS Li-Ion AUS

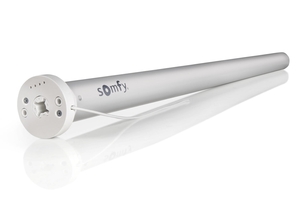

Sonesse 30 WireFree RTS Li-ion - 12mm

Premium Battery Motor Designed for Silence and Simplicity

More about
Application
Interior blinds
Technology Warranty
RTS technology 5 Years

Product benefits

BENEFITS FOR PROFESSIONALS​:

Convenience & Easy:​

  • Suitable for a wide range of interior applications (2Nm)​
  • Suitable for tubes diameter 30mm or more (Steel or aluminium)​

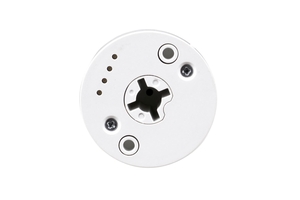

  • Thin, white motor head​
  • In-built lithium Li-ion rechargeable battery ​
  • 12mm tongue bracket compatibility​
  • Tilt function available (when paired with Situo RTS Variation control – Refer to instruction guide). ​



​Easy Installation: ​

  • No external batteries, no wires and no requirement for an electrician. ​
  • Simple and efficient installation thanks to the enhanced quick drive wheel assembly​ (Index C version only)
  • Adjustable speed (10-28 rpm) ​

​

Reliability: ​

  • Somfy quality backed by a 5 Year warranty



BENEFITS FOR END USERS​:

Robust & Easy: ​

  • Whisper quiet, seamless operation​​
  • Intermediate ‘my’ favourite position. ​
  • Compatible with TaHoma switch ​
  • Voice control available when paired to a TaHoma switch (Direct connection to Google Assistant & Amazon Alexa)​
  • Quick and clean installation with no damage to walls​
  • No wiring; no Electrician required. ​

​

Convenient & Smart: ​

  • Premium Lithium Li-ion rechargeable battery (1 charge per year)​
  • Low battery LED indicator on motor head​
  • Magnetic charging accessories available (sold separately)​
  • Compatible with V2 Li-ion Solar Panel (sold separately)​

Other documents & links

Others

Technical information

End product
End product type Internal Blinds

Technology
Radio Frequency RTS 433.42   MHz
Range in open field 200 m
Number of cycles per day 1   cycles
Range in house 20 m

Electrical
Antenna External [175 mm]
Consumption in standby mode 0.001   W
Consumption during operation 18   W
Nominal Voltage / Frequency DC - 12V
Rated current 1.5   A

Mechanical
Nominal Torque 2   Nm
Nominal Speed 20   rpm
Repeatabilty +/- 8   °
Capacity of the limit switch unit 200   turns
Type of limit switch unit Electronic

Standard
Approval RCM,CE
Insulation class III
Protection Index IP 20 (for indoor use only)

Dimension
Weight 0.76   Kg
Diameter 30   mm
Length (L1) [Index C] 605mm // [Index A & B] 603   mm
Basic crown for tube diameter 29   mm

Other
Noise level (according to Somfy measures) 44 (Nominal Speed)   dBA
Limits of use 17,5 cm wire length, must not be cut or lengthened. For greatest RF range, must not be exposed and should not come in contact with metal surfaces. RF wire may need to be repositioned for optimal performance.
