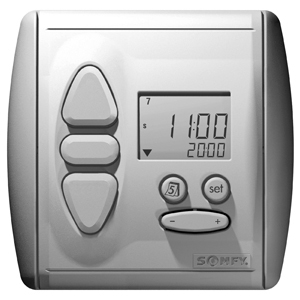

CHRONIS IB - 1805031 - 1 - Somfy

Ref : 1805031 - CHRONIS IB

CHRONIS IB

CHRONIS IB

Application
Awnings,External Screens,Roller shutters,Interior blinds
Technology
Wired Technology (WT)

Details and specifications

  • Busline controller with timer function and manual operation.
  • Can be used as a master controller for an IB setup.
  • Can also be used with any Somfy device that has a Busline input. eg. FTS Box, 4AC Motor Controller, etc.
  • Configurable one up, one down time per day that can differ each day of the week.
  • Programming Instructions for all our products can be found in the Somfy Pocket Book. You will need to log in to the Somfy Professionals website for access.



Technical information

Technology

Bus type IB Bus

Electrical

Output type of contact Dry contacts 3A
Minimum voltage 207   V
Maximum Voltage 253   V
Nominal Voltage / Frequency 230V 50/60Hz

Standard

Insulation class Class II
Protection Index IP40
Approval RCM

Cable

Wire section 0.75 - 1.5   mm²

Dimension

Width 80   mm
Height 80   mm
Depth 50   mm

Other

Working temperature +5 to +40   °C
Color / Finish White on grey
