Obsolete product, replaced by

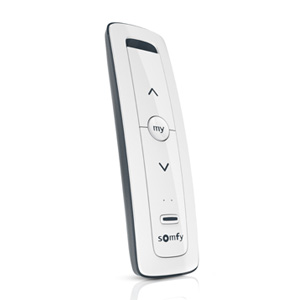

SITUO 5 RTS II PURE

Ref : 1871415

  • Obsolete product
TELIS 4 RTS PURE (5 Channel) - 1810631 - 1 - Somfy

Ref : 1810631 - TELIS 4 RTS PURE

TELIS 4 RTS PURE (5 Channel)

TELIS 4 RTS PURE (5 Channel)

Application
Curtains,Roller shutters,Interior blinds,Window Openers ,External Screens,Commercial Building Solutions,Awnings
Technology
RTS technology

Details and specifications

  • Five channel radio remote.
  • Allows for the individual and / or group control of
    RTS motors / receivers.
  • Supplied with wall mount.
  • Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

Technology
Range in house 20m between two concrete walls
Radio Frequency 433,42   MHz
Capacity of memory 5 channels

Electrical
Battery Type 2430 Lithium
Battery Voltage 3   V

Standard
Protection Index IP 30

Dimension
Width 49   mm
Height 145   mm
Weight 0,070   Kg
Thickness 22   mm

Other
Working temperature 0 to +60   °C
Color / Finish White & Grey

Accessories

2 Product(s)
WHITE EYELET KNOB KIT FOR TELIS - Pack of 10
Réf. 9013705
BATTERY LITHIUM 3V CR2430 FOR TELIS, CENTRALIS RTS, SITUO RTS
Réf. 9014943

Last consulted articles

SITUO 2 RTS II PURE
Réf. 1871417
RIGID FASTENER 1 LINK LIMITER (60mm TUBE)
Réf. 1780782
RS485 RTS TRANSMITTER
Réf. 1810803

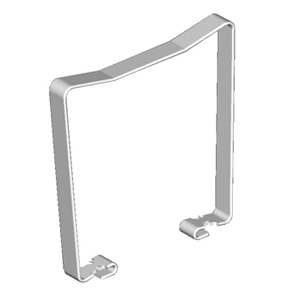

CLIP 51 x 57 EXTERNAL
