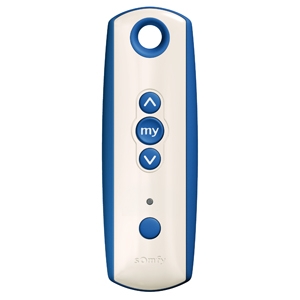

TELIS 1 RTS PATIO (1 Channel) - 1810642 - 1 - Somfy

Ref : 1810642 - TELIS 1 RTS PATIO

TELIS 1 RTS PATIO (1 Channel)

TELIS 1 RTS PATIO (1 Channel)

Application
Roller shutters,Curtains,Commercial Building Solutions,External Screens,Awnings,Interior blinds,Window Openers
Technology
RTS technology

Details and specifications

  • One channel radio remote.
  • Allows for the individual or group control of RTS
    motors / receivers.
  • Somfy Rolling Code.
  • Shock Resistant. Protection Index IP44
  • Supplied with wall mount.
  • Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

Technology
Range in house 20m between two concrete walls
Radio Frequency 433,42   MHz
Capacity of memory 1 channel

Electrical
Battery Type 2430 Lithium
Battery Voltage 3   V

Standard
Protection Index IP 44

Dimension
Width 49   mm
Height 145   mm
Weight 0,070   Kg
Thickness 22   mm

Other
Working temperature 0 to + 60 deg Celsius   °C
Color / Finish White & Blue

Accessories

2 Product(s)
WHITE EYELET KNOB KIT FOR TELIS - Pack of 10
Réf. 9013705
BATTERY LITHIUM 3V CR2430 FOR TELIS, CENTRALIS RTS, SITUO RTS
Réf. 9014943

Last consulted articles

DECOFLEX 1 CHANNEL BLACK
Réf. 1810899
MOTOR HOOK GA
Réf. 1780895
J4 10/24 RTS
Réf. 1210376
WHEEL Ø 40mm x 1.5mm ROUND TUBE
Réf. 9147544

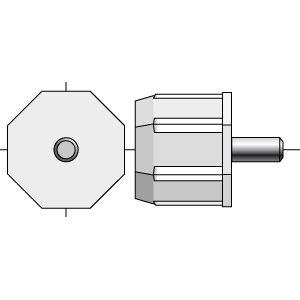

PLUG END FOR 40mm OCTAGONAL TUBE
