< Find A Product

Obsolete product, replaced by

SITUO 1 RTS SILVER

Ref : 1800460

  • Obsolete product

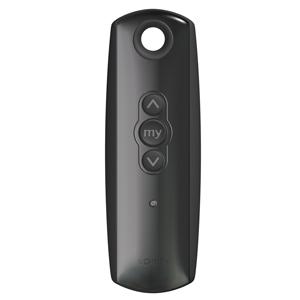

TELIS 1 RTS LOUNGE (1 Channel) - 1810649 - 1 - Somfy

Ref : 1810649 - TELIS 1 RTS LOUNGE

TELIS 1 RTS LOUNGE (1 Channel)

TELIS 1 RTS LOUNGE (1 Channel)

More about
Application
External Screens,Commercial Building Solutions,Window Openers ,Roller shutters,Awnings,Interior blinds,Curtains
Technology
RTS technology

Product benefits

Details and specifications

  • One channel radio remote.
  • Allows for the individual or group control of RTS
    motors / receivers.
  • Somfy Rolling Code.
  • Supplied with wall mount.
  • Shock Resistant.
  • Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

Technology
Range in house 20m between two concrete walls
Radio Frequency 433,42   MHz
Capacity of memory 1 channel

Electrical
Battery Type 2430 Lithium
Battery Voltage 3   V

Standard
Protection Index IP 30

Dimension
Width 49   mm
Height 145   mm
Weight 0,070   Kg
Thickness 22   mm

Other
Installation Wall brackets supplied
Color / Finish Shiny black
Information Shock-proof

Accessories

2 Product(s)
SILVER EYELET KNOB KIT FOR TELIS - Pack of 10
Réf. 9013743
BATTERY LITHIUM 3V CR2430 FOR TELIS, CENTRALIS RTS, SITUO RTS
Réf. 9014943

Last consulted articles

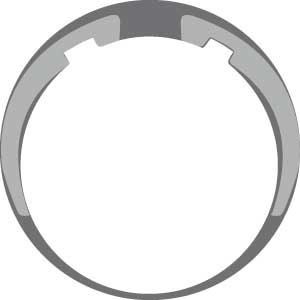

CROWN Ø 70mm ALUM. KEYWAY Perma, HD, Turnils
Réf. 9277167
CONE 25/35 - HEXA 6mm
Réf. 9162137

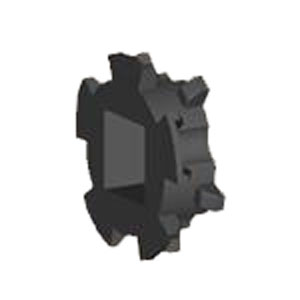

WHEEL FOR CHAIN 4.5 x 6mm
