UNIVERSAL SLIM RECEIVER RTS - CABLE - 1810783 - 1 - Somfy
UNIVERSAL SLIM RECEIVER RTS - CABLE - 1810783 - 1 - Somfy
Video
Video

Ref : 1810783 - UNIVERSAL RECEIVER PLATINE RTS

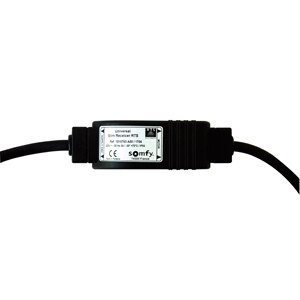

UNIVERSAL SLIM RECEIVER RTS - CABLE

UNIVERSAL SLIM RECEIVER RTS - CABLE

Application
Awnings,External Screens,Roller shutters
Technology
RTS technology

Details and specifications

  • Outdoor slimline radio receiver for connection to a
    standard motor allowing use via an RTS transmitter
    and RTS sensor. Supplied with bare cable either end.
    Compatible only with standard 230V motors.

*Not compatible with Rodeo or Linkeo motors.

Other documents & links

Install

Others

Technical information

Technology
Range in open field 200
Range in house 20
Radio Frequency 433.42   MHz
Capacity of memory 12
Bus type RTS

Electrical
Nominal Voltage / Frequency 230V 50Hz
Rated current 3.0   A

Standard
Insulation class II
Protection Index IP 54
Approval RCM

Dimension
Width 130   mm
Height 32   mm
Weight 0.100   Kg
Depth 33   mm

Other
Working temperature -30 to +70   °C
Color / Finish Black
