• Obsolete product

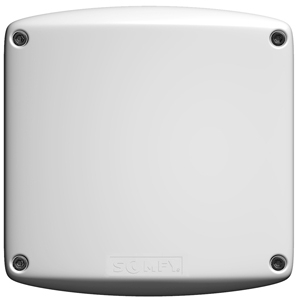

EOLIS BOX 2 - 1816046 - 1 - Somfy

Ref : 1816046 - EOLIS BOX 2

EOLIS BOX 2

EOLIS BOX 2

Application
Awnings,External Screens
Technology
Wired Technology (WT)

Details and specifications

  • A 230V AC wind controller interface unit mounted in a splashproof box suitable for outdoor mounting. IB switch input. A rain sensor can also be used with the addition of a rain control board (see sensors).
  • Programming Instructions for all our products can be found in the Somfy Pocket Book. You will need to log in to the Somfy Professionals website for access.

Technical information

Electrical

Output type of contact 250V 3.15A
Minimum voltage 207   V
Maximum Voltage 253   V
Nominal Voltage / Frequency 230V 50/60Hz

Standard

Insulation class II
Protection Index IP44
Approval RCM

Dimension

Width 150   mm
Height 150   mm
Weight 0.260   Kg
Depth 40   mm

Other

Working temperature -20 to +50   °C
Color / Finish Grey
