Ref : 9029512 - Pro Charging station for wirefree motors
Pro Charging station: 16 Channel USB-C
The Pro charging station that increases business efficiency and guarantees a simplified fast charging experience for up to 16 Wirefree motors and or battery packs with USB-C prior to installation.
| Application | ||
|---|---|---|
| Interior blinds | ||
| Warranty | ||
| 5 Years | ||
Product benefits
- The Pro Charging Station is designed to increase business efficiency as well as a simplified fast charging experience for up to 16 Wirefree motors and or battery packs with USB-C prior to installation.
- The Pro Charing Station includes the 16 x 3m charging cables.
- 2 Storage choice for the Pro Charging unit: Table-top (4 screw on rubber bumper feet) or Wall / rackmount (2 x brackets).
- Compatible with Movelite 35 WireFree RTS with USB C charging port (Standard charge time of 6 hours applies - no fast charging available).
Technical information
Electrical |
|
|---|---|
| Consumption in standby mode | 15 W |
| Consumption during operation | 500 W |
| Minimum voltage | 100 V |
| Maximum Voltage | 240 V |
Standard |
|
|---|---|
| Protection Index | IP 30 |
| Approval | RCM |
| Insulation class | Class III |
Dimension |
|
|---|---|
| Height | 55 mm |
| Width | 200 mm |
| Length (L1) | 440 mm |
| Weight | 3350 Kg |
Other |
|
|---|---|
| Color / Finish | Black |
| Information | Compatible with Smart Shading Wirefree motors and or battery packs with USB-C. |
Last consulted articles
EOLIS 3D SENSOR BLACK (Folding arm awnings only)
Réf. 9013847

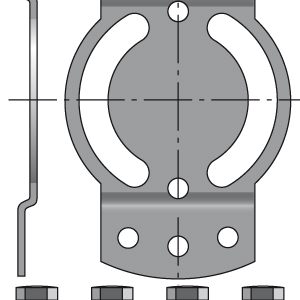

SQUARE BRACKET WITH MULTIPLE FIXING POINT
Réf. 9910040
ROLL UP 28 CROWN LOUVOLITE 40 MM
Réf. 9018588
OREA 50 RTS 40/17 3M White Cable
Réf. 1117119
SURFACE BOX FOR ARCHITRAVE PLATE (White)
Réf. 9011635

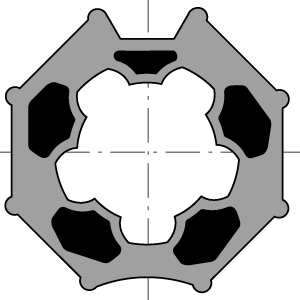

RING FOR OCT. 50mm TUBE
