Ref : 9430601 - FTS LT50/60 ACTUATOR BRACKET

HIGH LOAD BRACKET 50/60mm

HIGH LOAD BRACKET 50/60mm

Application
Awnings

Details and specifications

  • Three points for fixing bolts:
    - m6, 44mm and 48mm.
    - m8, 60mm.
  • Used for Starhead LT50 / LT60 motors
  • Maximum Torque: 120 Nm

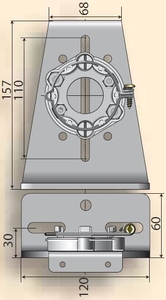

Technical information

Dimension
Width 120   mm
Height 157   mm
Thickness 60   mm
Fixing entraxes from 50 to 100   mm

Other
Material Steel
