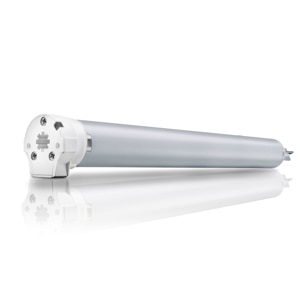

ROLL UP 28 WT W/ PIN - 1002832 - 1 - Somfy
ROLL UP 28 WT W/ PIN - 1002832 - 1 - Somfy

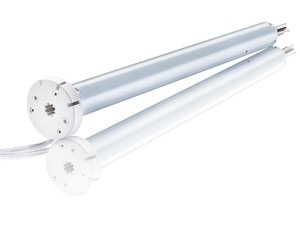

ROLL UP 28 WT W/ PIN - 1002832 - 2 - Somfy

Ref : 1002832 - ROLL UP 28 WT W/ PIN

ROLL UP 28 WT W/ PIN

ROLL UP 28 WT W/ PIN

Application
Interior blinds
Technology
Wired Technology (WT)

Other documents & links

Others

Technical information

End product
End product type Roller blinds, Solar screens, Zebra blinds, Roman blinds

Electrical
Consumption in standby mode 0.1296   W
Consumption during operation 7.68   W
Minimum voltage 20   V
Maximum Voltage 27   V
Rated current 0.32   A
Nominal Voltage / Frequency 24V DC

Mechanical
Capacity of the limit switch unit 60   turns
Type of limit switch unit Rapid / Electronic
Type of head Pin head
Nominal Speed 30   rpm
Nominal Torque 0.8   Nm
Repeatabilty ± 5   °

Standard
Approval RCM
Protection Index IP 30
Insulation class III

Cable
Plug in cable Not removable
Cable type JST
Wire section 0.20   mm²
Color white
Wire Length 2   m
Number of wires of the cable 2

Dimension
Weight 0.26   Kg
Diameter 25   mm
Overall length (L3) 293 ±1.75 mm   mm
Basic crown for tube diameter 28   mm

Other
Limits of use Indoor Use Only
Noise level (according to Somfy measures) 57   dBA
Working temperature -10 to +75   °C
