Tilt & Lift 25 RTS Central - 1003293 - 1 - Somfy

Ref : 1003293 - TILT&LIFT 25 RTS CENTRAL UNIT

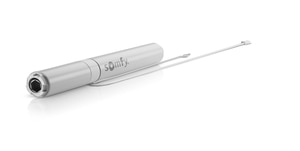

Tilt & Lift 25 RTS Central

The Tilt & Lift 25 RTS Central is a double output motor, specifically designed for tilting small Venetian blinds.

More about
Application
Interior blinds
Technology
RTS technology

Product benefits

Easy Integration

  • Suitable for headrails of at least 25x25mm
  • Double output motor for a central position in the headrail

Easy Installation

  • Battery-operated WireFree motor

Reliability and profitability

  • Safe protocol
  • Somfy quality & warranty



Details and specifications

Daily Comfort

  • Re-designed for a quieter performance
  • Smooth motion with adjustable speed
  • Tilt & Lift function
  • Soft start and stop

Discreet Integration

  • No damage to walls

Safety & Reliability

  • No electrical wires or cords, free from danger of strangulation

Other documents & links

Others

Technical information

End product
End product type Internal Blinds

Technology
Radio Frequency 433.42   MHz

Electrical
Antenna 15 cm wire length, must not be cut or lengthened. For greatest RF range, must not be exposedand should not come in contact with metal surfaces. RF wire may need to be repositioned for optimal performance.

Mechanical
Type of limit switch unit Electronic
Nominal Speed 30   rpm
Nominal Torque 0.8   Nm

Standard
Protection Index IP 30 (for indoor use only)
Insulation class Class III

Dimension
Length (L1) 200   mm

Other
Information To retain the motor’s battery lifespan, Somfy recommends recharging the battery at least once every 12 months, even if power remains. If the battery goes flat, recharge it immediately. Leaving a battery fully discharged for more than two months may irreparably damage its ability to recharge.
Working temperature 0 to 60   °C
