Ref : 1024234 - ALTUS 40 13/10 3M WHITE CABLE W/INLINE CONNECTOR

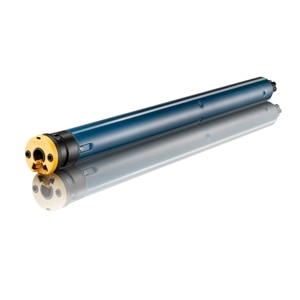

ALTUS 40 RTS 13/10 3M White Cable with inline connector

ALTUS 40 RTS 13/10 3M White Cable with inline connector

Application
Roller shutters
Technology
RTS technology

Details and specifications

This motor replaces 1024144 and will be available Q3 2016.  See here for more information regarding the update of the Altus and LS 40 range.

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Install

Others

Technical information

End product
End product type Roller Blinds, Roman Blinds, Roller Shutters

Technology
Radio Frequency 433.42   MHz
Range in open field 200m
Capacity of memory 12 different codes plus 3 wireless sensors
Coding Rolling code 16 million of possibilities
Range in house 20m with 2 reinforced concrete walls to ba passed through

Electrical
Antenna Integrated
Consumption in standby mode 0.5   W
Consumption during operation 110   W
Minimum voltage 195.5   V
Maximum Voltage 255   V
Rated current 0.52   A
Nominal Voltage / Frequency 230V 50Hz

Mechanical
Capacity of the limit switch unit Unlimited   turns
Type of head Round Head
Nominal Speed 10   rpm
Nominal Torque 13   Nm

Standard
Approval RCM
Protection Index IP44
Insulation class Class II

Cable
Plug in cable Inline Connector V2
Cable type PVC
Wire section 0.75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 2

Dimension
Diameter 40   mm
Length (L1) 507   mm
Weight 1   Kg
Overall length (L3) 520   mm
Riveting position distance (L2) 483   mm

Other
Installation Horizontal
Thermal time 4   mn
Noise level (according to Somfy measures) 52   dBA
Working temperature -10 to +40   °C
