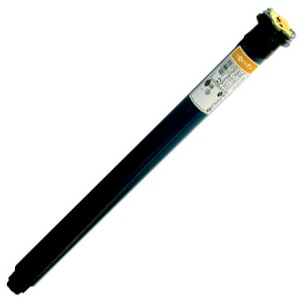

OREA 50 RTS 35/17 3M White Cable
Ref : 1116125 - OREA 50 RTS 35/17 VVF 3M - UNIT
OREA 50 RTS 35/17 3M White Cable
OREA 50 RTS 35/17 3M White Cable
Application | ||
---|---|---|
External Screens,Awnings | ||
Technology | ||
RTS technology |
Details and specifications
Programming Instructions for all our products can be found in the Somfy Pocket Book. You will need to log in to the Somfy Professionals website for access
Technical information
Technology |
|
---|---|
Radio Frequency | 433,42 MHz |
Capacity of memory | 12 different codes plus 3 wireless sensors |
Coding | Rolling code 16 million of possibilities |
Range in house | 20 m through 2 reinforced concrete walls |
Electrical |
|
---|---|
Antenna | Integrated |
Consumption during operation | 240 W |
Minimum voltage | 207 V |
Maximum Voltage | 253 V |
Rated current | 1.1 A |
Nominal Voltage / Frequency | 230V 50Hz |
Mechanical |
|
---|---|
Capacity of the limit switch unit | 250 turns |
Type of limit switch unit | Electronic |
Type of head | Star head |
Nominal Speed | 17 rpm |
Nominal Torque | 35 Nm |
Repeatabilty | <± 3 ° |
Standard |
|
---|---|
Approval | RCM |
Protection Index | IP44 |
Insulation class | Class I |
Cable |
|
---|---|
Plug in cable | Grey LT Plug |
Cable type | PVC |
Wire section | 0,75 mm² |
Color | White |
Wire Length | 3 m |
Number of wires of the cable | 3 |
Dimension |
|
---|---|
Riveting position distance (L2) | 640 mm |
Weight | 2,56 Kg |
Overall length (L3) | 663 mm |
Basic crown for tube diameter | 50 x 1,5 mm |
Length (L1) | 655 mm |
Other |
|
---|---|
Thermal time | 4 mn |
Noise level (according to Somfy measures) | 56 dBA |
Working temperature | -10 to +40 °C |
