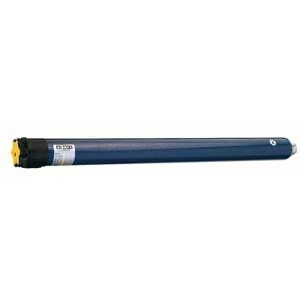

ALTUS 60 RTS 55/17 3M White Cable - 1161117 - 1 - Somfy

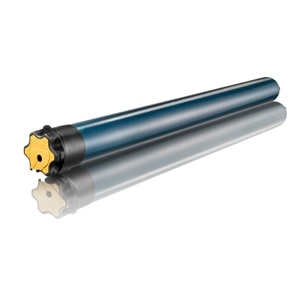

ALTUS 60 RTS 55/17 3M White Cable - 1161117 - 1 - Somfy
ALTUS 60 RTS 55/17 3M White Cable - 1161117 - 2 - Somfy

Ref : 1161117 - ALTUS 60 RTS 55/17 VVF 3M - UNIT

ALTUS 60 RTS 55/17 3M White Cable

ALTUS 60 RTS 55/17 3M White Cable

Application
Awnings,Roller shutters
Technology
RTS technology

Details and specifications

Programming Instructions for all our products can be found in the Somfy Pocket Book.  You will need to log in to the Somfy Professionals website for access

Other documents & links

Others

Technical information

Technology
Radio Frequency 433,42   MHz
Capacity of memory 12 different codes plus 3 wireless sensors
Coding Rolling code 16 million of possibilities

Electrical
Antenna Integrated
Consumption during operation 290   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 1.5   A
Nominal Voltage / Frequency 230V AC - 50Hz

Mechanical
Capacity of the limit switch unit 200   turns
Type of limit switch unit Electronic
Type of head Star
Nominal Speed 17   rpm
Nominal Torque 55   Nm
Repeatabilty <± 3   °

Standard
Approval RCM
Protection Index IP 44
Insulation class Class I

Cable
Cable type PVC
Wire section 0,75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 3

Dimension
Length (L1) 740   mm
Basic crown for tube diameter 63 x 1,5   mm
Weight 4,18   Kg
Overall length (L3) 734   mm
Riveting position distance (L2) 717   mm

Other
Thermal time 4   mn
Noise level (according to Somfy measures) 64   dBA
Working temperature -10 to 40   °C
