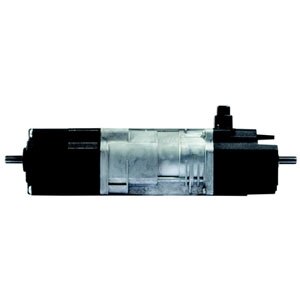

J4 6/24 WT
Ref : 1210291 - J406 6/24 WT U 0,5M STAS3
J4 6/24 WT
J4 6/24 WT
Application | ||
---|---|---|
Exterior venetian blinds | ||
Technology | ||
Wired Technology (WT) |
Details and specifications
- Fast connection.
- 230V / 50Hz tubular motor.
- The J4 is one of the most flexible motor range, and can be adapted for use in all External Venetian Blinds.
- The universal motor can be used in U or N shape.
- The compact size motor is an ideal solution for both new buildings and renovation projects.
- 2-way mushroom, the mushroom works both on the up and down direction.
- Suitable for 57x51mm, 58x56mm, 78x76mm headrails.
- Horizontal mount only.
- Intermittent Usage.
- To enable RTS control, pair a J4 WT motor with the Soliris MOD / VAR Slim Receiver RTS - Hirschmann Plug (Ref. 1810802).
Technical information
Electrical |
|
---|---|
Consumption during operation | 95 W |
Minimum voltage | 207 V |
Maximum Voltage | 253 V |
Rated current | 0.4 A |
Nominal Voltage / Frequency | 230V 50Hz |
Mechanical |
|
---|---|
Capacity of the limit switch unit | 200 turns |
Type of limit switch unit | Electronic |
Nominal Speed | 24 rpm |
Nominal Torque | 6 Nm |
Standard |
|
---|---|
Approval | RCM |
Protection Index | IP54 |
Insulation class | Class I |
Cable |
|
---|---|
Plug in cable | STAS3 |
Cable type | PVC |
Wire section | 0.75 mm² |
Color | Black |
Wire Length | 0.5 m |
Number of wires of the cable | 4 |
Dimension |
|
---|---|
Riveting position distance (L2) | 47 mm |
Weight | 1.5 Kg |
Overall length (L3) | 254 mm |
Length (L1) | 222 mm |
Other |
|
---|---|
Thermal time | 6 mn |
Noise level (according to Somfy measures) | 53 dBA |
Working temperature | -20 to +70 °C |
