MOVELITE 35 WT 1.0M WHITE CABLE - 1240237 - 1 - Somfy Act for green

Ref : 1240237 - Movelite35 WT W EU 1.0M

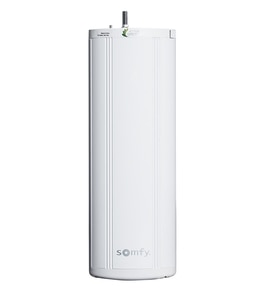

MOVELITE 35 WT 1.0M WHITE CABLE

An accessible and elegant curtain motorisation solution with the essential features

More about
Application
Curtains
Technology Warranty
Wired Technology (WT) 5 Years

Product benefits

Reliable and minimalistic

• A curtain motor solution with the essential functions

• Suitable for residential and commercial projects



Adaptive and effective

• Compatible with multiple technologies (WT/RTS/DCT*) to meet varying needs and applications

• Curtain weight up to 35kg



Flexible Installation

• Available with optional inline connector for ease of programming

Details and specifications

Elegance and comfort

• An accessible curtain motor solution which provides the essential features



Smart and Simple

• Movelite WireFree RTS is compatible with Connexoon Window RTS for App control or add a Google Assistant or an Amazon Alexa for voice control



NOTE: Factory reset of the Movelite AC motor in either WT or DCT technology requires a DCT setting tool [9014599]. Sold separately.

Other documents & links

Others

Technical information

Electrical
Consumption in standby mode 0.49   W
Minimum voltage 100   V
Nominal Voltage / Frequency AC - RGE 8 - 90-240V/50-60HZ

Mechanical
Type of limit switch unit Electronic
Nominal Speed 105   rpm
Nominal Torque 0.6   Nm

Standard
Protection Index IP 30
Insulation class Class I

Cable
Plug in cable STRIPPED
Cable type VVF
Wire section 0.75   mm²
Color WHITE
Wire Length 1   m
Number of wires of the cable 4

Dimension
Length (L1) 263   mm
Rail length 10   m
Overall length (L3) 283   mm

Other
Information Factory reset of the Movelite AC motor in either WT or DCT technology requires a DCT setting tool [9014599]. Sold separately.
Thermal time 2.5   mn
Noise level (according to Somfy measures) 41   dBA
Working temperature 0°C to +60°C   °C
