Ref : 1241163 - Altus 28 WF RTS

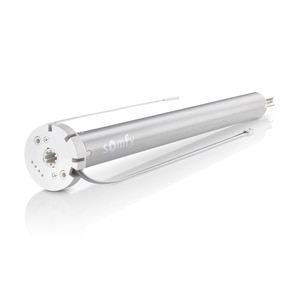

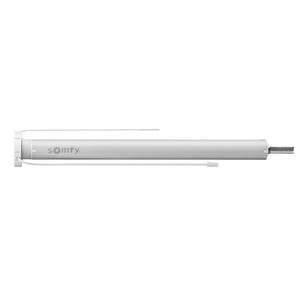

Altus 28 WireFree RTS 1.5/28 (V2)
The compact solution for narrow windows
Altus 28 WireFree RTS is an extremely compact and quiet solution for narrow windows.
Application | ||
---|---|---|
Interior blinds | ||
Technology | Warranty | |
RTS technology | 5 Years |
Product benefits
Easy Integration
- Attached external antenna
- Sleep mode to prevent motor from unwanted pairing
Simple installation
- Recessed program button + LED feedback
- Program end limits via transmitter
- No need to have electrical knowledge
- WireFree motor for quick installation
- Perfect for narrow windows
- Battery mounting clips included
Details and specifications
- Powered by a compact lithium-ion external battery
- In one click, move the blind to your favourite position
- WireFree for quicker installation
- LED light flashes red when battery is low and requires a recharge
- Soft start and soft stop
- Adjustable speed from 10 to 28 rpm
- White and thin round head for discreet blending
Other documents & links
Install
Others
Technical information
End product |
|
---|---|
End product type | Internal Blinds |
Technology |
|
---|---|
Radio Frequency | 433.42 MHz |
Electrical |
|
---|---|
Compatible accessories | External battery (9021217) and Li-ion charger (9025165) |
Nominal Voltage / Frequency | Lithium ion external battery |
Mechanical |
|
---|---|
Type of limit switch unit | Electronic |
Nominal Speed | 28 rpm |
Nominal Torque | 1.5 Nm |
Standard |
|
---|---|
Protection Index | IP 20 (for indoor use only) |
Insulation class | Class III |
Dimension |
|
---|---|
Diameter | 44 mm |
Length (L1) | 326 mm |
Other |
|
---|---|
Noise level (according to Somfy measures) | 54 dBA |
Working temperature | 0 to 60 °C |
