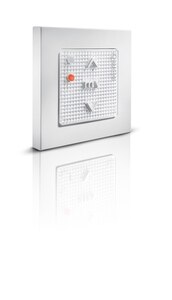

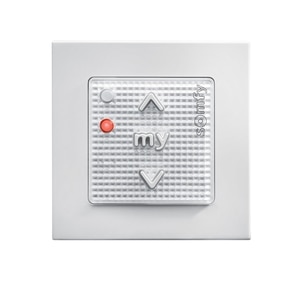

Ref : 1800223 - Smoove Origin 2 RTS + Frame
Instinctive and flexible group control
A complementary wall switch with multi channel management to control several applications
Application | ||
---|---|---|
Roller shutters,Interior blinds,External Screens,Curtains,Exterior venetian blinds | ||
Technology | ||
RTS technology |
Product benefits
Easy Installation
- The WireFree solution allows for easy installation, with no need for wiring
Adaptable
- Choice of single or multi-channels, to suit all configuration of installing with the same design
- Control multiple products on a single channel, or control multiple channels in a group
Reliable Features
- An instinctive ergonomic design
- A range of frames to suit all decor
Details and specifications
The Smoove Origin 2 RTS offers a tailored solution to cover all needs with two channels, allowing for control of multiple applications.
The WireFree solution allows for easy installation, without the need to connect to wires.
You can offer your customers and instinctive and flexible group control option thanks to direct access to the channels selection to combined applications depending on their daily needs. With new multi-channel functionality, you can also choose to control multiple channels at once for ultimate convenience. Select 1 or 2 channels to control at the same time. To deselect a channel, push on a selected button and wait for the LED to turn off, it's that simple! When using the multi-channel function, commands will be sent independently with time offset between each channel command.
It can be integrated with all interior decors thanks to its timeless design and the choice of colour frames.
WARNING - THIS PRODUCT CONTAINS A BUTTON BATTERY
Keep batteries out of reach of children. If swallowed, this button battery can cause severe or fatal injuries within 2 hours. If you think batteries have been swallowed or placed inside any part of the body, seek urgent medical attention
Technical information
Technology |
|
---|---|
Range in open field | 150m |
Radio Frequency | 433.42 MHz |
Capacity of memory | 2 |
Bus type | RTS |
Electrical |
|
---|---|
Battery Type | Button Battery |
Nominal Voltage / Frequency | 3V Button Battery |
Standard |
|
---|---|
Protection Index | IP 30 |
Dimension |
|
---|---|
Length (L1) | 80 mm |
Width | 80 mm |
Depth | 10 mm |
Other |
|
---|---|
Working temperature | 0 to 48 °C |
