Obsolete product, replaced by

LIGHTING IN-WALL RECEIVER RTS

Ref : 1811251

  • Obsolete product
CENTRALIS LIGHT INDOOR RECEIVER RTS - 1810165 - 1 - Somfy

Ref : 1810165 - LIGHTING INDOOR RTS

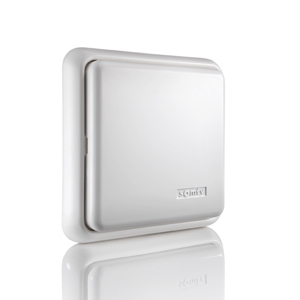

CENTRALIS LIGHT INDOOR RECEIVER RTS

CENTRALIS LIGHT INDOOR RECEIVER RTS

Application
Awnings,Interior blinds,External Screens,Commercial Building Solutions,Window Openers ,Curtains,Exterior venetian blinds,Roller shutters
Technology
RTS technology

Details and specifications

  • Indoor radio receiver for connection to a standard
    light allowing use via an RTS transmitter. Can
    control virtually any bulb type.
  • Frequency: 433.42MHz.
  • IP30.
  • 500W max load.
  • Dimensions: 110 x 110 x 45mm.

Other documents & links

Others

Technical information

Technology
Range in open field 200
Range in house 20
Radio Frequency 433,42   MHz
Capacity of memory 12
Bus type RTS

Electrical
Output type of contact 250V 3,15A
Minimum voltage 205   V
Maximum Voltage 255   V
Nominal Voltage / Frequency 230V 50/60Hz

Standard
Insulation class II
Protection Index IP 30
Approval RCM

Cable
Color Black - White

Dimension
Width 80   mm
Height 80   mm
Weight 0,080   Kg
Depth 45   mm

Other
Working temperature + 5 to + 40   °C
Color / Finish Black & White
Limits of use Incandescent or halogen 500W Max.
