SOLIRIS MOD/VAR SLIM RECEIVER RTS - CABLE - 1810806 - 1 - Somfy

Ref : 1810806 - MODULIS SLIM RECEIVER CABLE

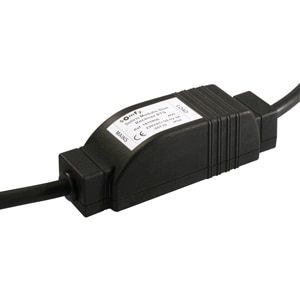

SOLIRIS MOD/VAR SLIM RECEIVER RTS - CABLE

SOLIRIS MOD/VAR SLIM RECEIVER RTS - CABLE

Application
Exterior venetian blinds,Interior blinds
Technology
RTS technology

Details and specifications

  • Outdoor radio receiver with Modulis scroll functionality for connection to a standard motor allowing use via an RTS transmitter and RTS sensor.
  • Compatible only with standard 230V motors.

Other documents & links

Others

Technical information

Technology
Range in open field 200
Range in house 20
Radio Frequency 433,42   MHz
Capacity of memory 12
Bus type RTS

Electrical
Minimum voltage 207   V
Maximum Voltage 253   V
Nominal Voltage / Frequency 220 - 240V, 50 Hz
Rated current 3.0   A

Standard
Insulation class II
Protection Index IP54
Approval RCM

Dimension
Width 33   mm
Weight 0.100   Kg
Depth 130   mm
Height 32   mm

Other
Working temperature -30 to +70   °C
Color / Finish Black
Information Compact high index protection housing.
